The OT-100125 is a full pressure acquisition system optimized for oil and gas industries typical jobs where reliability and measurement performance are critical.

Coupling a high-resolution high-accuracy proprietary small package MEMS sensor with a tailored ultra low power digital electronics and memory, the OT-100125 is able to adapt its measurement period to provide critical information during operations.

High Pressure High Temperature
10/15/20 Kpsi
125/150° C
Ultra High resolution
5 mPsi at 1 Hz
Ultra High accuracy
±1 Psi
High Reliability
Shock tested
NACE compliant
User defined measurement period
128Hz to 0.01Hz

Easy Deployment

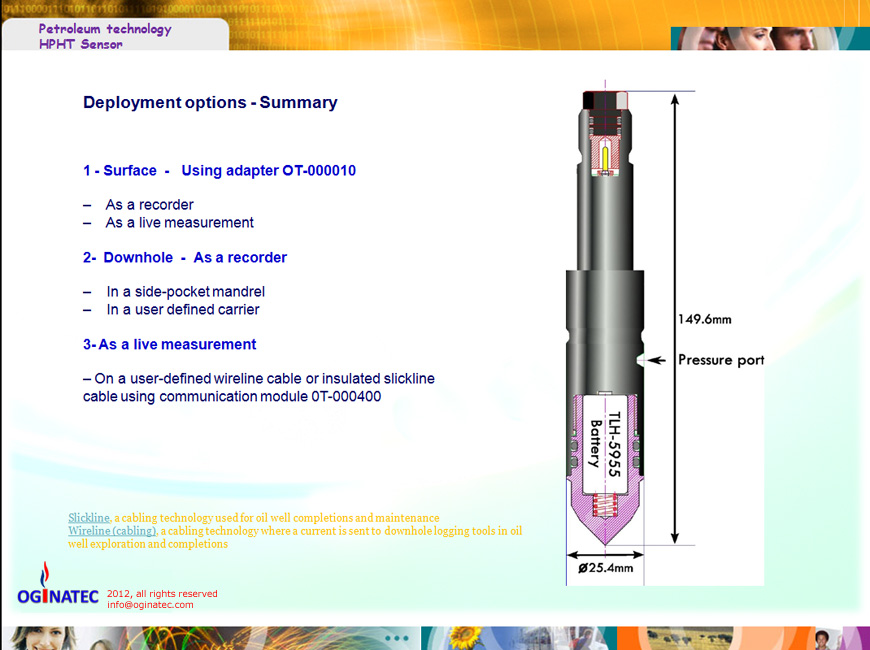

Side Pocket mandrel valve integration*

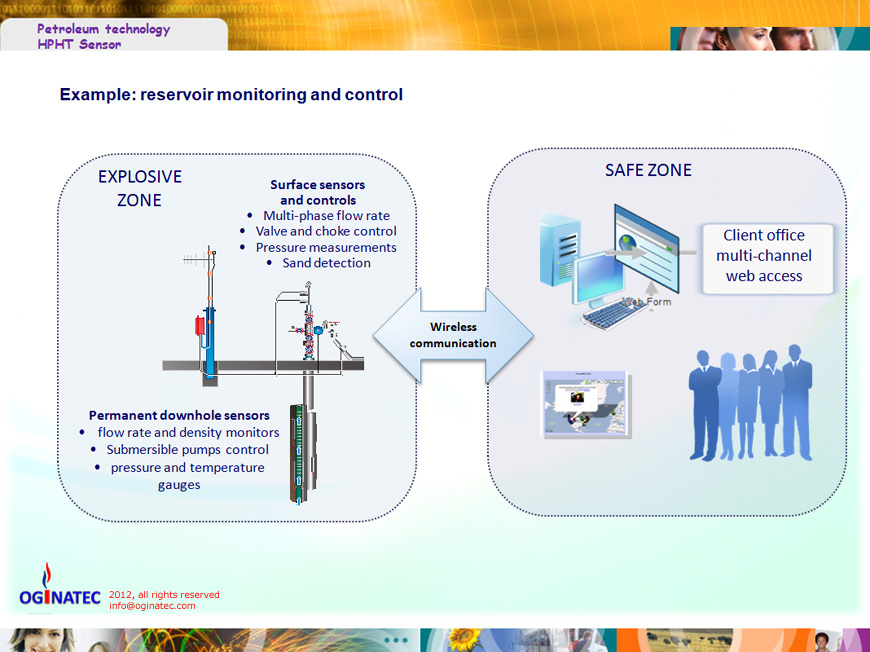

Permanent monitoring
High resolution pressure measurement
High accuracy time stamps on data for dual
sensor synchronisation
Ultra Low power
Single battery operation
3.6V high temp
Up to 18 months continuous operation
depending on battery sub
